Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

  • 1
  • 2

Brand Name : BAOSTEEL

Model Number : 300 series

Certification : ISO9001

Place of Origin : Jiangsu,China

MOQ : 1 MT

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000MT/Month

Delivery Time : 5-8 work days

Packaging Details : Exporting package/wooden box package/Or per customers’ requirement

Product Name : Stainless Steel Angle Bar

Grade : 300series

Application : Construction

Type : Equal,Unequal Angel Bar

Standard : ASTM, JIS, GB, AISI, DIN

Technique : Hot Rolled Cold Rolled

Contact Now

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Descriptions

Steel Equal Angles are the most basic type of roll-formed steel. Equal Steel angles are used for various purposes in a number of industries. Steel angles come in either equal sizes, unequal sizes and in duragal.Angles that have the same measure (i.e. the same magnitude) are said to be equal or congruent. An angle is defined by its measure and is not dependent upon the lengths of the sides of the angle (e.g. all right angles are equal in measure).Equal angle sections are widely used for general fabrication work, frame making, automotive applications, and in the construction industries. Equal angle has a 90° angle in the centre of the profile and both sides having equal width.

Product Name Stainless Steel Angle Bar
Standard GB ASTM, JIS, SUS, DIN, EN etc
Material 300 Series
Surface Finish Polished , HL , Colour Pipe , Pickling
Thickness 1mm - 30mm
Width Can Be Customize
Length 1m - 12m , or according to your requests.
Technique Hot rolled, Cold rolled
Usage Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis.
Quality Test We can offer MTC (Mill Test Certificate )
Stock or Not Have Stock
Container Size 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)

Chemcial Elements

Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤ 0.03 3.5-5.5 16.0-18.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-13.0 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 19.0-22.0 24.0-26.0 -
314 ≤0.25 ≤1.5-3.0 ≤2.0 ≤0.045 ≤ 0.03 19.0-22.0 23.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.013 17.0-19.0 -
347 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤ 0.03 9.0-13.0 17.0-19.0
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
420 ≤0.16-0.25 ≤1.0 ≤1.0 ≤0.040 ≤ 0.03 - 12.0-14.0 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤ 0.03 ≤0.60 16.0-18.0 -
904L ≤0.02 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 23.0-28.0 19.0-23.0 -

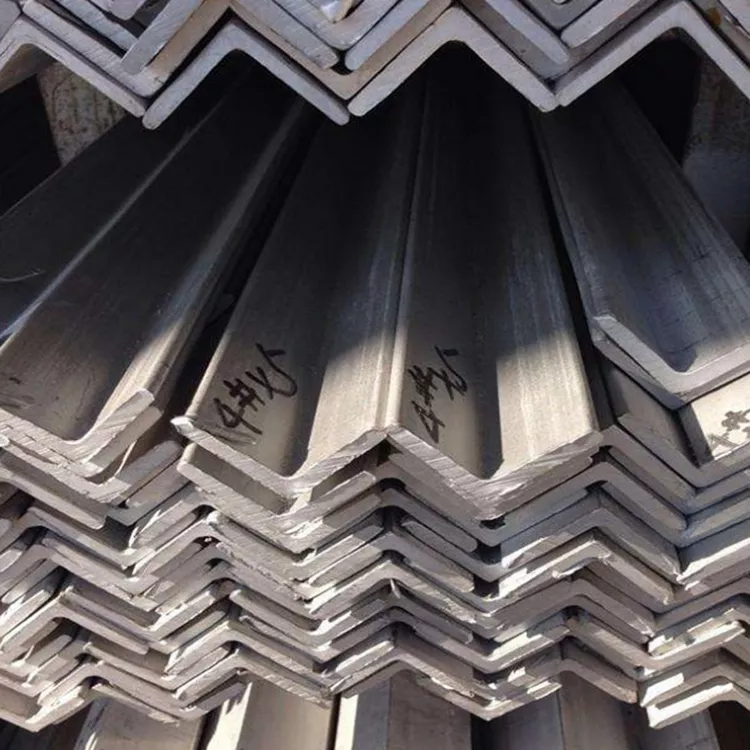

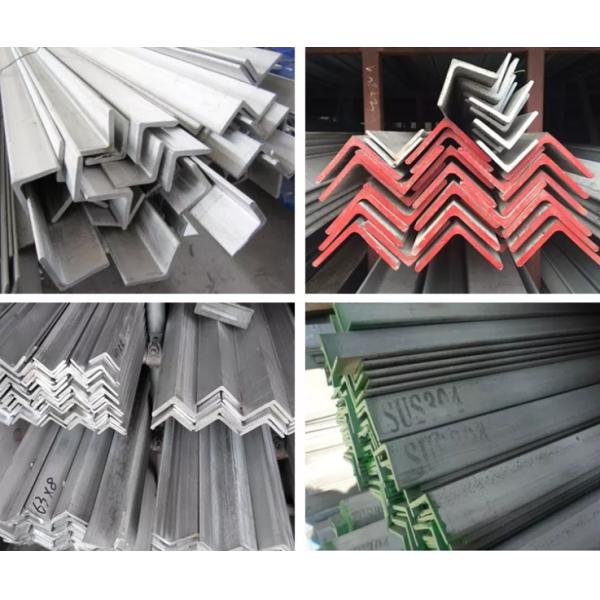

Products Details

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI StandardCustomize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Applications

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Packing & Shipping

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

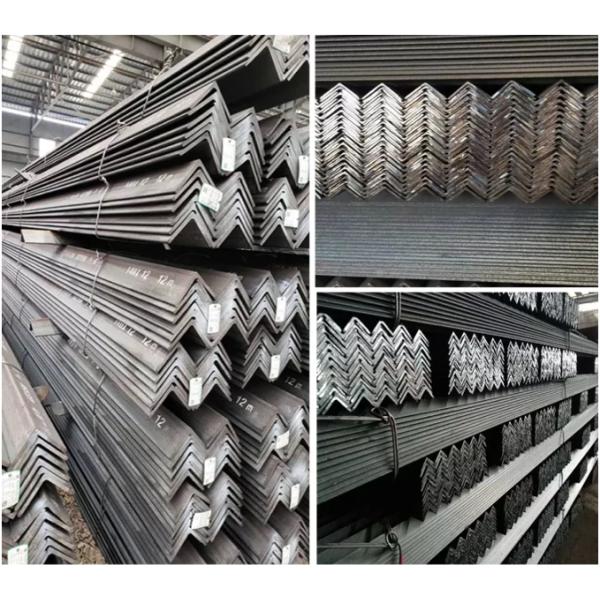

Our Warehouse

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

Certificates

Customize Size 316L Stainless Steel Angle Bar Equal,Unequal Angel Bar For Construction AISI Standard

FAQ

Q:Are you trading company or manufacturer ?

A:We are specialized in manufacturing in Jiangsu, China.

Q: How about your quality and how do you guarantee the quality?
A:As for the products, we make them according to the needs of our customers.We welcome customers or the third party inspection agencies to come to our factory for inspection.

Q:What is your terms of payment ?
A: Usually 30%TT Advance + 70% Balance. If you have another question, Please feel free to contact us.
